PQ Series High-Frequency Transformer for Fast-Charging with High-Power Density and High Conversion Efficiency

Nombre De La Marca:	ZXY
Número De Modelo:	ZXY-PQ
Cuota De Producción:	Negociable
Precio:	Negociable
Detalles Del Embalaje:	CAJA DE CARTÓN

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Shenzhen Guangdong

Certificación:

RoHS、ISO9001、CE

Capacidad de la fuente:

3-4 semanas

Resaltar:

High-Power Density PQ Series Transformer

Fast-Charging High-Frequency Transformer

High Conversion Efficiency Power Transformer

Descripción del producto

PQ Series New Energy Vehicle Charging Pile Transformer

The PQ Series Transformer is a high-frequency, high-power density solution specifically engineered for New Energy Vehicle (NEV) charging piles and onboard chargers (OBC). Utilizing advanced PQ core geometry, this transformer is optimized for fast-charging modules ranging from 20kW to 240kW+. It excels in tram fast charging applications by ensuring minimal temperature rise, superior electrical isolation, and high conversion efficiency.

Key Advantages

Ultra Fast Charging Core Power: Specially designed for high-power charging modules, improving energy conversion efficiency (up to 98% or more), reducing heat waste, and enabling faster, more energy-efficient charging station operation.
Compact Design, High Energy Density: Unique PQ magnetic core geometry enables greater inductance and power transmission in limited space, facilitating equipment miniaturization and lightweighting for charging pile manufacturers.
Multiple Protections and Stability: Excellent anti-saturation capability and electromagnetic shielding performance ensure stable output in complex power grid environments without noise interference, safeguarding charging safety.
Multi-Protocol Compatibility: Flexible adaptation to various topology structures (LLC resonance, full bridge shift equality), providing perfect compatibility for both low-voltage vehicles and future high-voltage platform vehicles.

Performance Characteristics

Feature	Performance Characteristic	Technical Benefit
Core Material	Low-loss Mn-Zn ferrite material	Reduces core loss at high frequencies, improving overall energy efficiency
Frequency Range	20 kHz to 200 kHz (customizable)	Enables high-frequency operation, reducing transformer size and weight
Power Density	Compact PQ core geometry	Optimizes space utilization within the charging module
Operating Temperature	Class B / Class H insulation system (130°C - 180°C)	Ensures reliable performance under continuous full-load operation
Dielectric Strength	High isolation voltage (typically 3000VAC - 4000VAC)	Provides robust electrical safety isolation between primary and secondary
Winding Technology	Precision multi-strand Litz wire or copper foil	Minimizes skin effect and proximity effect losses at high frequencies
Efficiency	Up to 98% (depending on design parameters)	Reduces energy waste and lowers cooling requirements
Leakage Inductance	Controlled low leakage inductance	Essential for soft-switching topologies (e.g., LLC resonant converters)
Thermal Management	Optimized winding layout and core design	Ensures even heat distribution, enhancing long-term reliability
Customizability	Turns ratio, inductance, and mounting style adjustable	Adaptable to various power levels (20kW - 240kW+) and circuit topologies

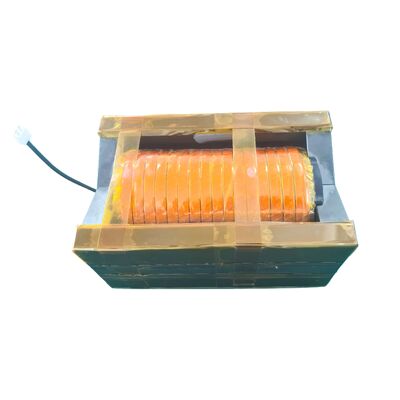

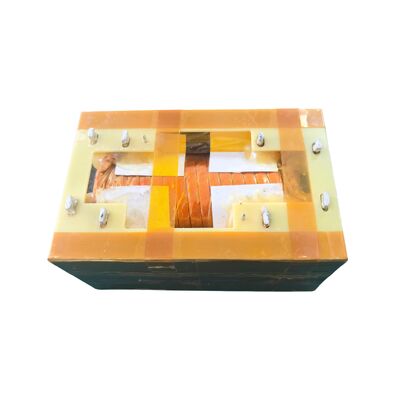

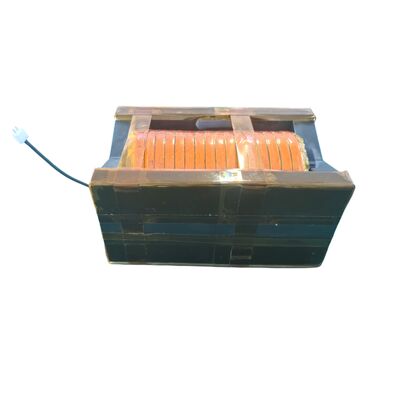

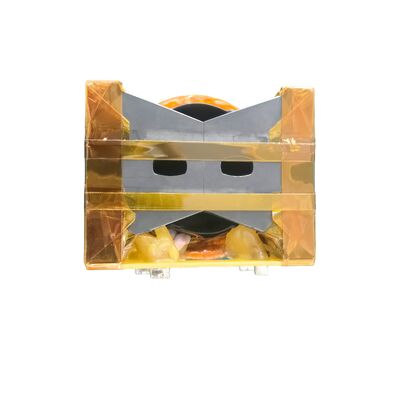

Product Images
