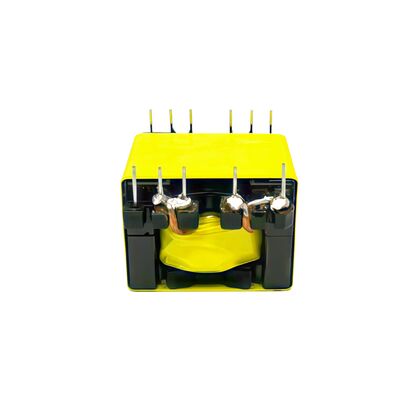

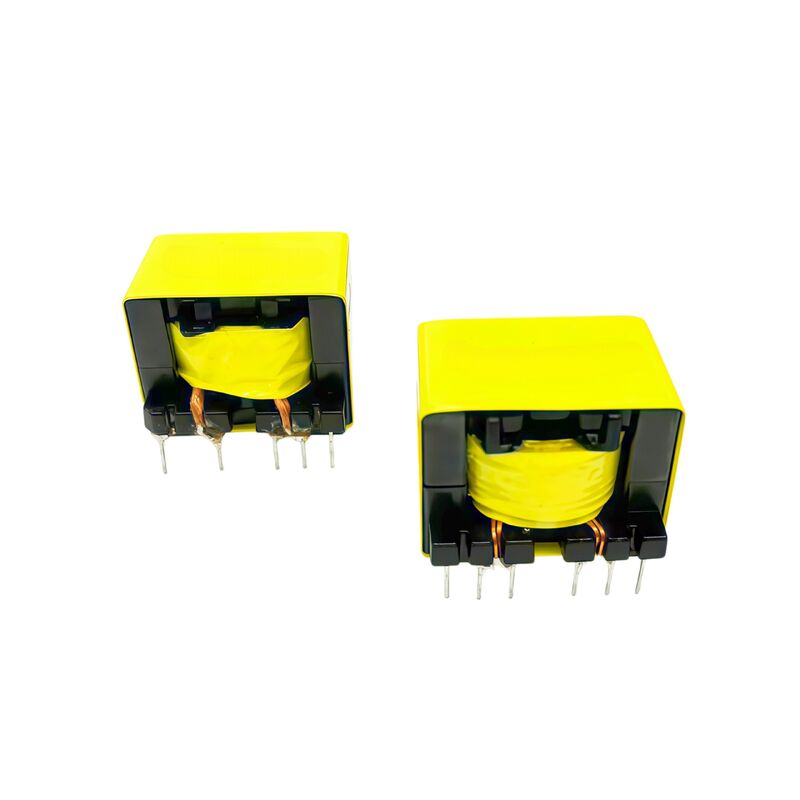

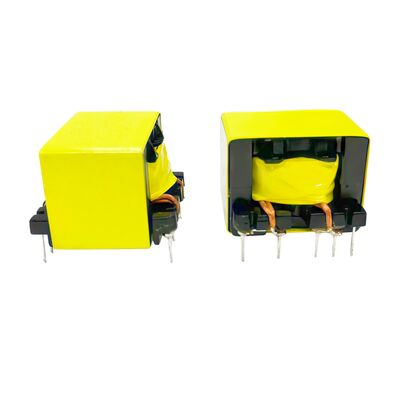

PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply

Nombre De La Marca: ZXY
Número De Modelo: PQ2620
Cuota De Producción: Negociable
Precio: Negociable
Detalles Del Embalaje: CAJA DE CARTÓN
Información detallada
Descripción del producto
Información detallada
Lugar de origen:
Shenzhen Guangdong
Certificación:
RoHS、ISO9001、CE
Resaltar:

PQ2620 High Frequency Transformer

,

100W-250W Ferrite Core Transformer

,

500kHz Power Transformer

Descripción del producto
PQ2620 High Frequency Transformer Ferrite Core Power Transformer Switching Power Supply
The PQ2620 high-frequency transformer utilizes high-performance ferrite cores and represents a compact power conversion solution specifically engineered for modern switching power supplies (SMPS). Its unique PQ type magnetic core design (Power Quality) achieves exceptional power density within limited PCB space while effectively reducing EMI electromagnetic interference and magnetic core losses through optimized magnetic circuit structure. This transformer typically supports power transmission from 100W to 250W, with operating frequencies up to 500kHz. It is widely implemented in flyback converters, AC-DC power modules, LED drivers, and isolated power systems for industrial and communication equipment, achieving an optimal balance between high efficiency, miniaturization, and thermal performance.
Key Applications
Consumer Electronics and Power Adapters
  • Medium to high power switching power supplies for desktop computers, servers, and industrial equipment
  • Fast charging and laptop power adapters including USB PD fast charging (60W and above)
  • Household appliance power supply modules
Industrial and Communication Equipment
  • Communication infrastructure power supplies for network switches, routers, and base stations
  • Industrial control power systems for equipment and instruments
  • UPS uninterruptible power supplies for critical equipment backup
Automotive and New Energy Applications
  • Electric vehicle onboard chargers and battery management systems
  • Photovoltaic inverter auxiliary power sources
Professional and Special Applications
  • Medical equipment power supplies with high isolation and safety requirements
  • Electric vehicle charging equipment core transformers
  • Gate driver power supplies for IGBT or MOSFET drivers in inverters
  • High-end and high-power LED lighting drivers
Performance Characteristics
Feature Description Benefit
High Power Density Compact PQ26/20 geometry with optimized winding area Saves valuable PCB space while handling significant power (typically 100W-250W)
Low Core Loss (Iron Loss) Premium Mn-Zn ferrite material (PC40, PC95) optimized for high frequencies Reduces heat generation; improves overall energy efficiency (up to 98% in some designs)
Superior Thermal Management PQ (Power Quality) shape provides large surface-to-volume ratio Excellent heat dissipation; allows for cooler operation under full load
High Saturation Current Optimized magnetic path length and air gap design Prevents core saturation during peak current loads, ensuring stable inductance
Excellent EMI Shielding Closed-core geometry with minimal magnetic flux leakage Reduces electromagnetic interference; simplifies filter design for EMC compliance
Wide Frequency Range Designed to operate efficiently from 50kHz up to 500kHz+ Suitable for modern high-frequency SMPS topologies (Flyback, Forward, LLC)
High Isolation Voltage Physical separation between primary and secondary windings Meets safety standards (1500VAC - 3000VAC isolation) for industrial and medical use
Mechanical Stability Rigid bobbin construction with precise pin alignment Reliable PCB mounting; resistant to vibration and thermal shock
Product Images
PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply 0 PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply 1 PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply 2 PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply 3 PQ2620 High Frequency Ferrite Core Power Transformer 100W-250W 500kHz for Switching Power Supply 4
