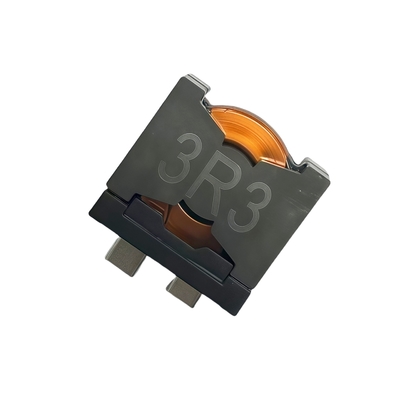

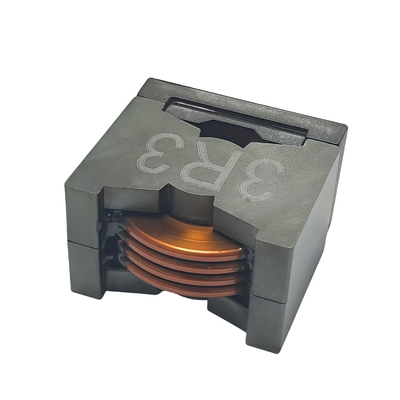

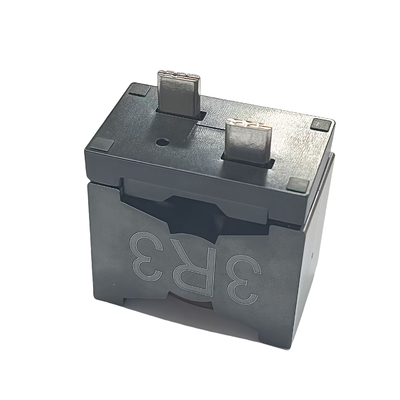

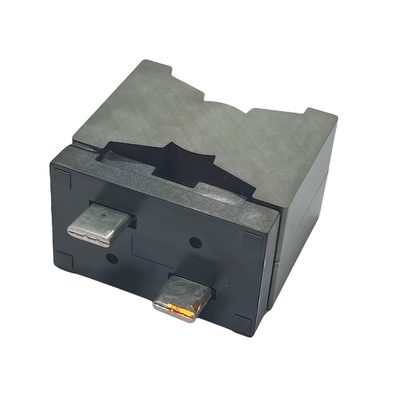

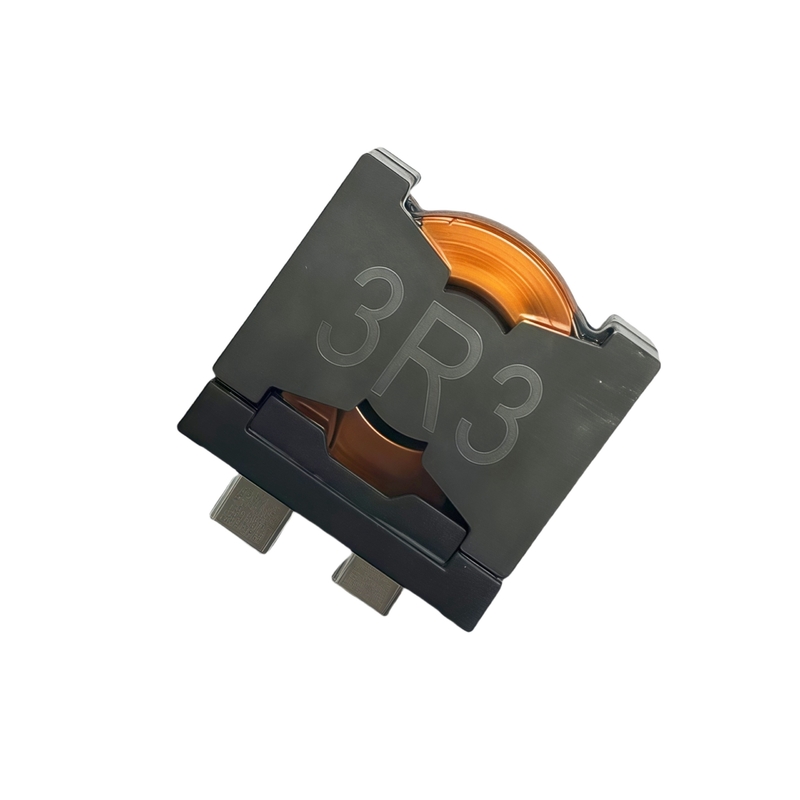

PQ3521 3R3M High Power Inductor Coil High Current Flat Copper Wire Inductor

Todas Las Categorías

Transformador audio de la aleación de níquel e hierro

transformador de alta frecuencia

Transformador de baja frecuencia

inductor del microprocesador

Contacta con nosotros

Ms. Chen

rhea@zxycoil.com

+8613554723725

Contacta ahora

PQ3521 3R3M High Power Inductor Coil High Current Flat Copper Wire Inductor

Nombre De La Marca:	ZXY
Número De Modelo:	ZXY-PQ3521
Cuota De Producción:	Negotiable
Precio:	Negociable
Detalles Del Embalaje:	En el caso de las mercancías
Condiciones De Pago:	T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Ciudad de China, Shenzhen.

Certificación:

RoHS、ISO9001、CE

Product Name:

High Current Flat Copper Wire Inductor

El tipo:

Inductor de alambre plano PQ

Model Number:

PQ3521

Tipo de proveedor:

Inductance:

Customized

Mounting Type:

Resaltar:

Cable de inducción de alta potencia

Cable de inducción de alta corriente

3R3M bobina de inducción

Descripción del producto

PQ3521 3R3M High Power Inductor Coil High Current Energy Flat Copper Inductor

1.Product Description

High Current Flat Copper Wire Inductor is an inductor designed specifically for high current applications. It uses flat copper wire as the winding material, and the unique flat shape design greatly increases the cross-sectional area of the wire, effectively reducing the DC resistance and being able to carry larger currents while reducing heat generation and power loss. The magnetic core usually uses high permeability magnetic materials, such as ferrite or metal magnetic powder cores, to optimize the magnetic circuit structure, enhance the inductance performance, and ensure stable inductance values and efficient energy storage and conversion even when high currents pass through. This type of inductor is widely used in battery management systems for new energy vehicles, high-power power conversion equipment, industrial motor drives, and other fields. It can meet the strict requirements of high current, high efficiency, and low loss, and ensure the stable operation of equipment under complex working conditions with reliable performance. It is an indispensable core component in high-power electronic circuits.

2.Performance Characteristics

Performance Characteristics	Details
High Current - Carrying Capacity	Utilizes flat copper wire with a large cross - sectional area, reducing the DC resistance significantly. This design enables it to handle high - density currents, minimizing power losses and heat generation during operation. It can support current ratings far exceeding those of traditional round - wire inductors, making it suitable for high - power applications.
Low DC Resistance	The flat structure of the copper wire increases the effective conducting area, resulting in a lower DC resistance. This characteristic helps to reduce energy consumption and improves the overall efficiency of the circuit, especially in scenarios where power loss needs to be minimized.
Stable Inductance	Equipped with high - permeability magnetic cores, such as ferrite or metal powder cores. These cores optimize the magnetic circuit, ensuring stable inductance values even under high - current conditions. The inductor maintains consistent performance, contributing to the reliable operation of the electrical system.
High Power Handling	Capable of withstanding high levels of power due to its ability to carry large currents and maintain low resistance. It can effectively store and transfer energy in high - power circuits, such as those found in electric vehicle battery management systems, industrial motor drives, and high - power power supplies.
Good Heat Dissipation	The flat shape of the copper wire provides a larger surface area for heat dissipation. Combined with appropriate magnetic core materials and construction techniques, it helps to prevent overheating during continuous high - current operation, ensuring long - term reliability and durability.
Compact Design	Despite its high - current and high - power capabilities, it often features a relatively compact form factor. The flat wire winding allows for a more space - efficient design, making it easier to integrate into densely - packed electronic circuits and systems where space is at a premium.
Wide Operating Frequency Range	Designed to operate effectively across a broad frequency spectrum. It can maintain stable performance in both low - frequency and high - frequency applications, providing flexibility for various circuit designs and requirements.

PQ3521 3R3M High Power Inductor Coil High Current Flat Copper Wire Inductor 0
